Jinma 164Y 16hp turf series agricultural farm tractor, mini lawn garden wheel tractor

Product Categories

Anhui Liteduro Technology Co.,Ltd.

Contact Now

Name: Jinma 164Y 16hp turf series agricultural farm tractor mini lawn garden wheel tractor
Brand: JINMA
Price: 1 USD

Place of Origin : China

Brand Name : JINMA

Certification : EEC/COC, EPA

Model Number : JM164E

Type : Wheel Tractor

By wheel : 4WD

Usage : Lawn Tractor

Certificate : CE

Power : 16hp, diesel

MOQ : 1 set

Price : negotiable

Packaging Details : crate

Delivery Time : within 30-45 days after receipt of payment

Payment Terms : t/t in advance or l/c at sight

Supply Ability : 5000 sets/month

Shipment : by sea

Contact Now

Jinma 164Y 16hp turf series agricultural farm tractor, mini lawn garden wheel tractor

16HP Mini Tractor JM164Y with 4WD and CE Certification

Tractor Parameters	Model		JM-164Y
	Drive Type		4WD
	Overall Dimensions LWH(mm):		2602X1050X2403
	Wheel Track (mm)	Front	750
		Rear	840,940
	Wheel Bass(mm)		1290
	Ground Clearance (mm)		248
	Rated Traction Force(N)		3500
	Construction Mass(kg)		890
	Min.Turning Radius(m)		2.40
	Theoretical Speed (km/h)	Forward	1.32,1.95,3.04,6.01,8.9,13.92
		Reverse	1.63,7.46
Engine Specifications	Model		3M78
	Type		3-Cylinder Vertical,water cooled,4 stroke cycle
	Rated Power(kw/hp)		11.8/16
	Rated Speed (rpm)		2400
	Bore*Stroke (mm)		78X78.4
	Total Displacement(L)		1.123
Drive System	Clutch		7'Single Stage
	Gear Box		(3+1)X2
	Main Drive		Columniform gear
	Differential		Bevel Gear
	Differential Lock		Jaw Lock
	Final Transmission		Spur Gear, External gearing
Traveling Mechanism	Tyre	Front	5.00-12
		Rear	7.5-16
	Steering Gear		Power Steering
	Brake		Disc type
Working Device	Hydraulic System	Lifting Capacity at 610mm Behind Lift Point (N)	2640
		3-Point Suspension	Category:0
	P.T.O Shaft	Rotating Speed (rpm)	540/720/1000
		Spline Size

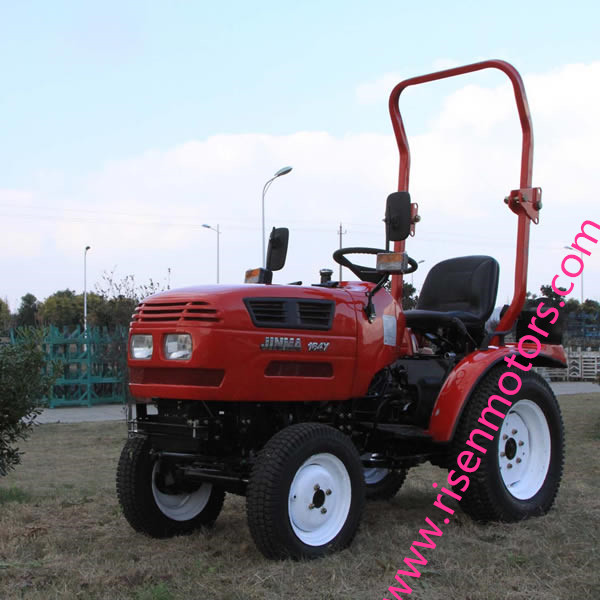

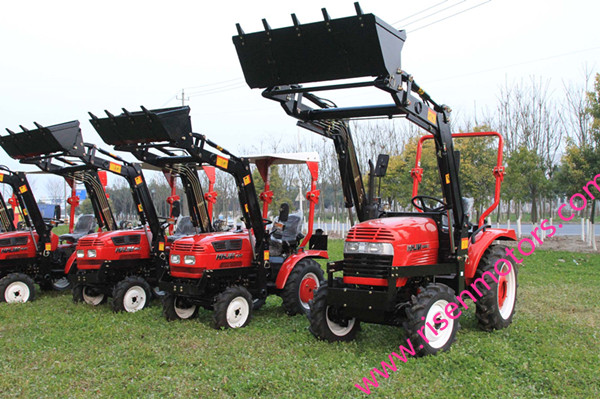

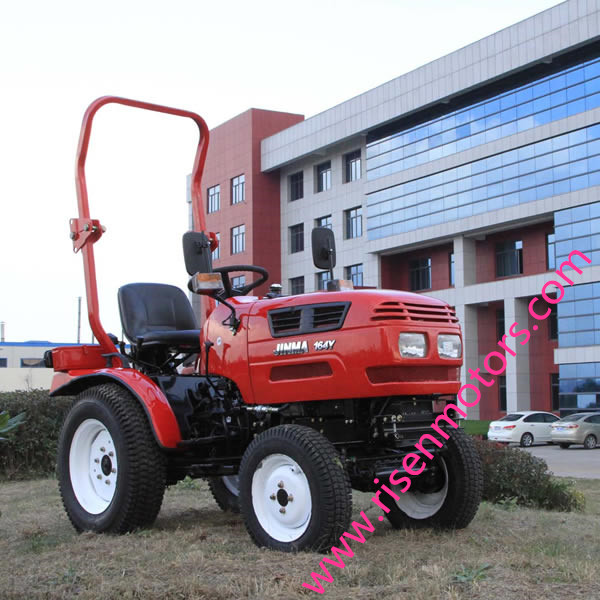

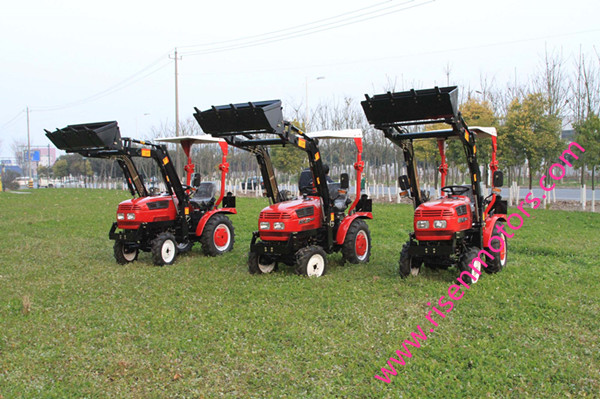

Jinma 164Y 16hp turf series agricultural farm tractor, mini lawn garden wheel tractor Images
